Stainless Steel Dutch Wire Mesh
Materials:Stainless Steel Wire: SS304, 304L,321,316,316L,347 and so on.
Special Steel: Cromax,Incoloy,Alloy Ni-Cr,Inconel,Nichel,Monel,
Titanium,Duplex.

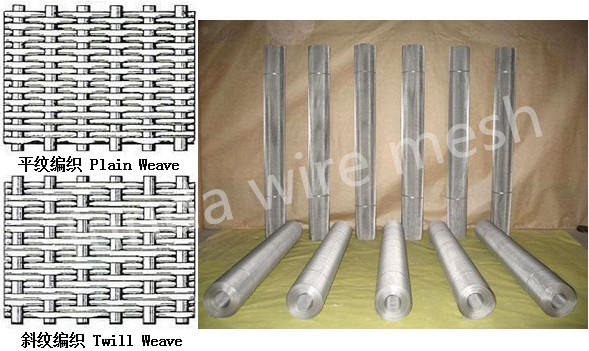

Weaving ways:Plain weave and twill weave.
Function:Acid-proof,alkali-resistant,heat-resistant and abrasion
resistant.
Application:Widly used in mining,petroleum,chemical,food, pharmaceutical,machinery industry and so on.

Mesh
(Warp×Weft)
(mesh/inch)

Wire diameter
Warp×Weft
(mm)

Mesh
(mesh/inch)
Warp×Weft

Wire diameter
Warp×Weft
(mm)

7×40

0.9×0.71

20*270

0.25*0.2

8×45

0.8×0.6

20*200

0.35*0.28

8×85

0.45×0.315

24*300

0.28*0.18

10×90

0.45×0.28

20*150

0.45*0.355

10×76

0.5×0.35

30*340

0.28*0.16

12×64

0.56×0.4

30*270

0.28*0.20

14×110

0.355×0.25

40*430

0.18*0.125

14×76

0.45×0.355

50*500

0.14*0.11

16×100

0.4×0.28

65*600

0.14*0.09

17×120

0.355×0.224

70*600

0.14*0.09

16×120

0.28×0.224

78*680

0.112*0.08

20×110

0.355×0.25

80*680

0.112*0.08

22×120

0.315×0.224

90*850

0.10*0.063

24×110

0.355×0.25

100*760

0.10*0.071

28×150

0.28×0.18

130*1200

0.071*0.045

35×170

0.224×0.16

150*1400

0.063*0.04

 40×200

0.18×0.135

160*1500

0.063*0.036

45×250

0.16×0.11

165*1500

0.063*0.036

50×300

0.16×0.09

174*1700

0.063*0.032

60×500

0.14×0.055

165*1400

0.063*0.04

50×270

0.14×0.10

174*1400

0.063*0.04

70×930

0.10×0.03

203*1600

0.05*0.032

60×270

0.14×0.1

216*1800

0.045*0.03

77×560

0.14×0.05

250*1600

0.05*0.032

80×600

0.1×0.045

285*2100

0.036*0.025

70×390

0.112×0.071

300*2100

0.036*0.025

65×750

0.10×0.036

317*2100

0.036*0.025

70×340

0.125×0.08

325*2300

0.036*0.024

80×430

0.125×0.063

363*2300

0.032*0.022

100×1200

0.063×0.023

400*2700

0.028*0.02

500*3500

0.025*0.015

Special specifications can be produced by the customer's requirements
