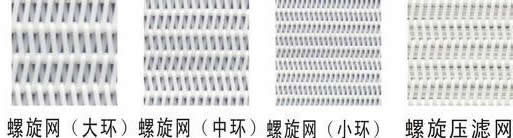

Polyester Spiral Mesh (Paper Making Mesh)

Polyester Spiral Dryer Fabric: Material: Polyester monofilament. Polyester spiral dry screen is mainly used in the dryness part of paper-making machines, drying process of printing and dyeing and other industrial.
Polyester Spiral Filter Screen: This kind of polyester mesh is made of polyester spiral dryer fabric which is filled with stuff to reduce the air permeation and to intensitive the opening, hence to reduce the material loss from the mesh opening. Polyester spiral filter screen is mainly used in sludge desiccation, paper pulp washing, coal washing, chemicals, dehydration of wine bran, vinegar bran dehydration and other industries. It is better in the high ventilation part of the dryness part of paper-making machine.

Model

Wire Diameter(mm)

Thickness(mm)

Weight

(kg/m2)

Air Permeability
(m3/m2h)

Warp

Weft)

4070B

0.9

1.1

3

1.7

20500+-1500

4070A

0.9

1.1

3

1.9

5250+-500

3868B

0.7

0.9

2.5

1.4

18500+-1500

3868A

0.7

0.9

2.5

1.7

4750+-500

3252B

0.5

0.7

1.9

1.1

15000+-1500

3252A

0.5

0.7

1.9

1.4

4000+-500
