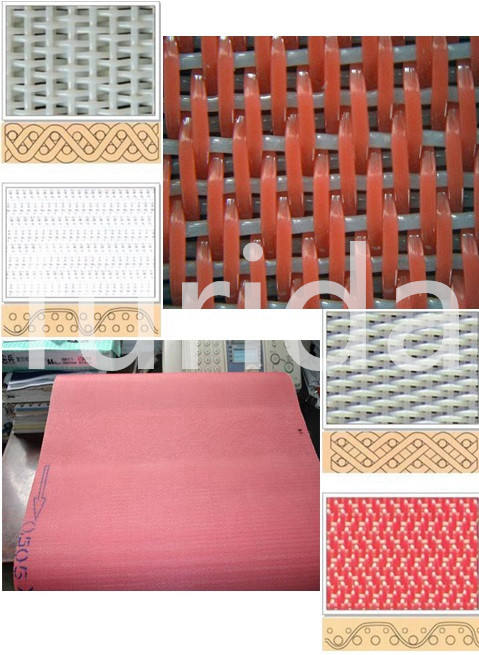

Polyester Dryer Mesh

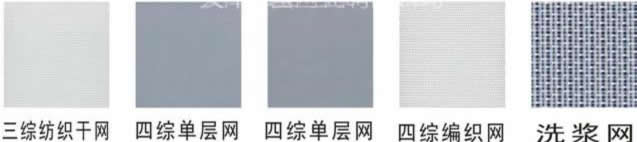

Polyester dryer screen mesh can be divided into three sheds and four sheds according to weaving patterns and it can be divided into one and half mesh, double layer mesh and flat dryer mesh according to varieties. It can be divided into inserting type, slotting type, slotting ring and spiral ring connecting types according to the different connecting types. Three-shed series one and half layer mesh is suitable for drying of paper under 70gram. Four-shed series double layer dryer screen is suitable for paper with a weight more than 70gram. 4106 round thread screen and flat thread screen are suitable for thin papers with weight under 60gram.



Weaving Series And Types

Model

Wire Diameter(mm)


Density(thread/cm)

Air Permeability (m3/m2h)

Warp

Weft

Warp

Weft

4 shed single layer fabric

CXW27274

0.20

0.27

29.5-30

21-22

7800

CXW27254

0.20

0.25

29.5-30

21.5-22.5

8000

CXW 31204

0.18

0.20

34.5-35.5

27.5-28.5

7500

8 shed single layer fabric

CXW25358

0.22

0.35

27.5-28.5

18.5-19.5

9000

CXW27358

0.20

0.35

29.5-30.5

19.5-20.5

8500

CXW25408

0.22

0.40

27.5-28.5

18.5-19.5

8500

7 shed double layer fabric

CXW57177

0.17

0.18/0.20,0.20

64-65

47-48

5000

8 shed double layer fabric

CXW56188

0.17

0.18/0.20,0.20

62-63

46.5-47.5

7000

16 shed double and a half layer fabric

CXW603516

0.17

0.13,0.20/0.35,0.35

68-69

46-47

7500

CXW602516

0.17

0.13,0.18/0.25,0.25

68-69

51-52

4200
